Insulated Panels
Hoesch® isorock HP Acoustic Mineral Wool Wall Panel
- Wall Panels
The Hoesch® isorock HP Acoustic Mineral Wool Wall Panel significantly improves room acoustics by being used as a partition wall for interior applications.
- Improves room acoustics and dampens sound and noise
- Lowers the noise level in the room and increases the sense of well-being
- Mineral wool insulation core
Standard External Colors
- R9006
- R9010
- R9002
Standard Internal Colors
- R9002
The colours available can be found in the 'Colours and Coatings' brochure.
Technical Information

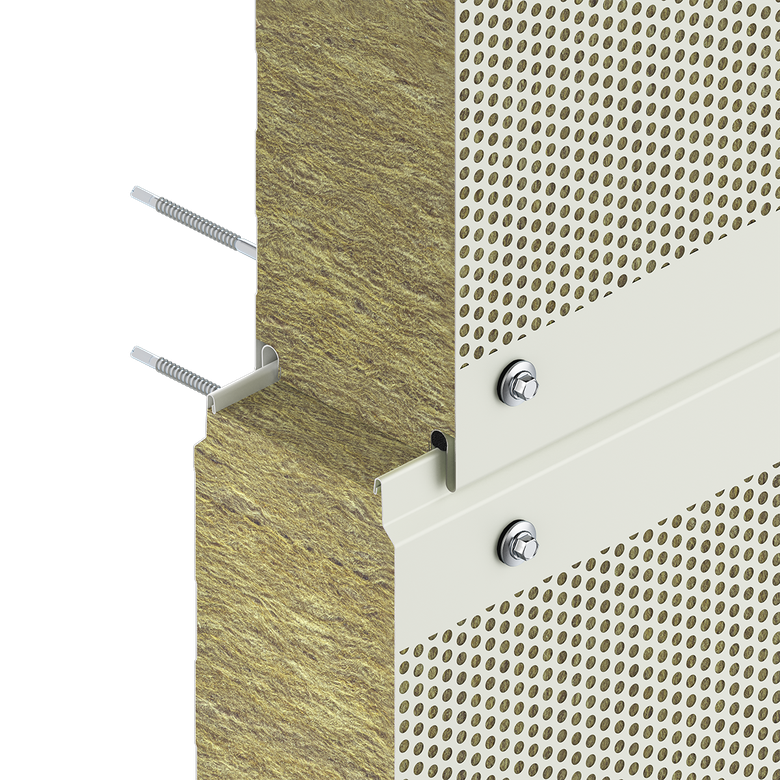

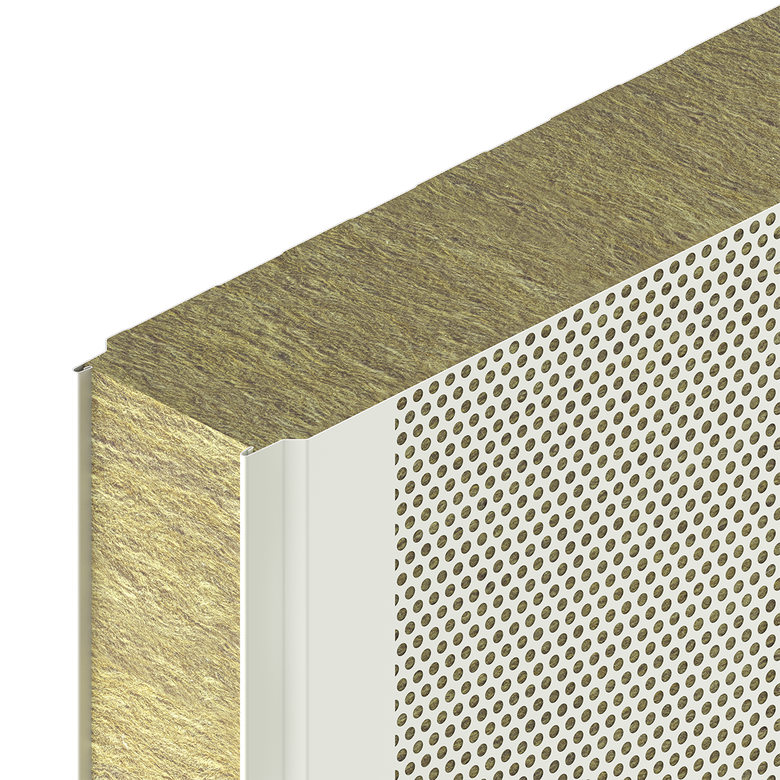

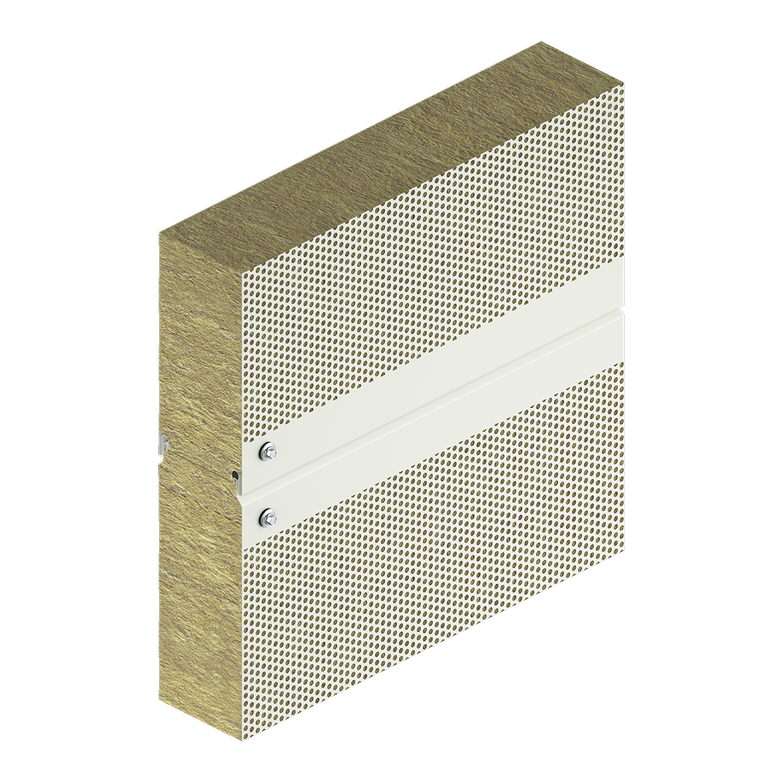

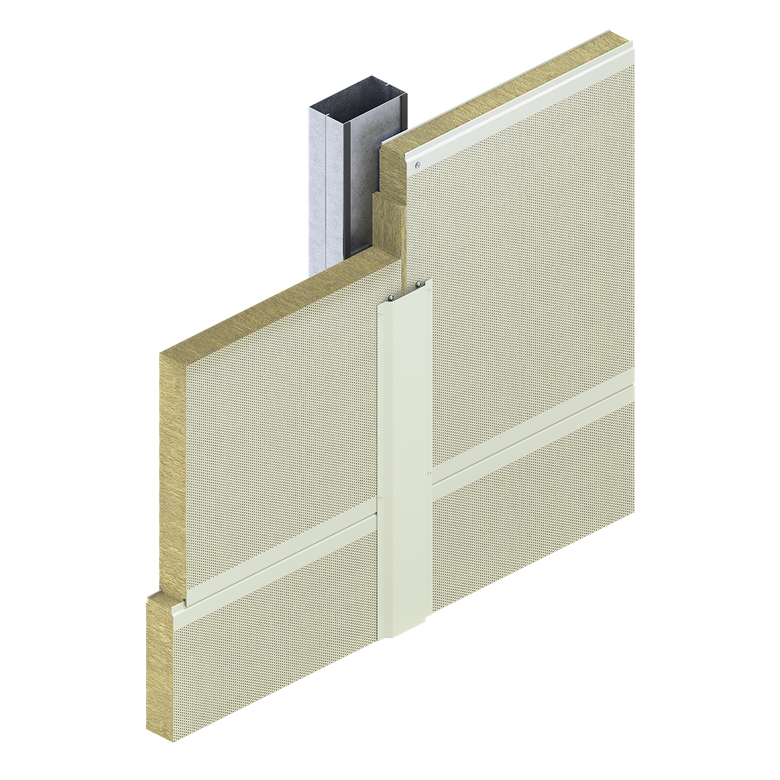

The Hoesch® isorock HP Acoustic Mineral Wool Wall Panel is a visible fixed insulated panel with mineral wool insulation core and perforated inner cover layer. It is used as a partition wall and only for internal application. Due to the perforated inner face layer, the acoustic behavior in rooms is significantly improved. Especially for acoustic insulation and sound absorption applications. The sandwich elements can be laid vertically or horizontally. The sound absorption coefficient (α<sub>w</sub>) according to EN ISO 11654:1997 is 0.95 for element thicknesses of 80-100 mm and 1.0 for element thicknesses of 120-150 mm. The sound absorption coefficients (α<sub>s</sub>) are available from Kingspan Technical Support.
